Opis artikla
2 - Way system; 180 Watt RMS Power; High-fidelity, full range reproduction of music and speech; Vertical or horizontal mounting; Coverage pattern 90° x 60° (Rotatable horn); Integrated rigging points & carry handle; Stand fitting pole adapter (35 mm); Scratch-free EPDM coating
Ostale informacije

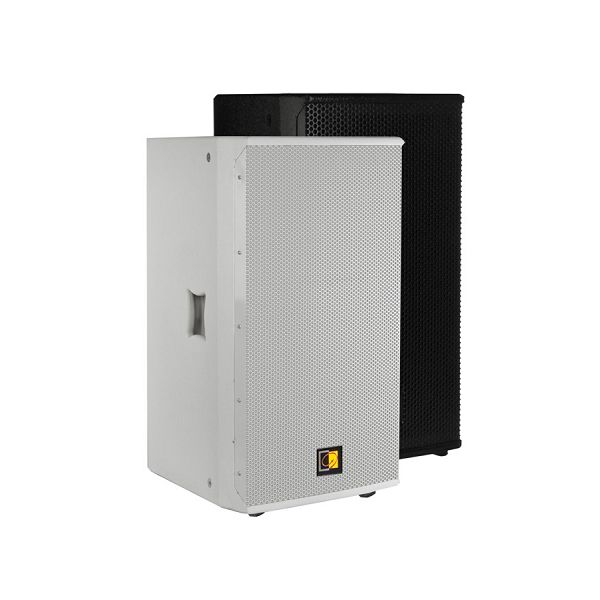

The PX Series are compact full range loudspeaker
cabinets for a wide varity of indoor applications.
They come in four different models, each of them
with different size and performance meeting the
requirements for every specific application.

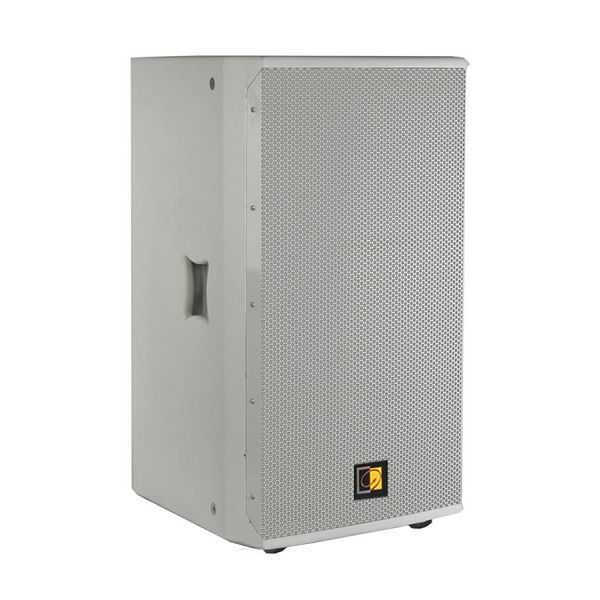

The PX110MK2 is the 10” model of the PX
family, consisting of a 10” high output woofer
and a compression driver with 1” voice coil. The
compression driver is fitted with a 90° x 60° coverage
horn which can be rotated allowing both horizontal
and vertical use.
Thanks to the high quality components and an
accurately optimized integrated passive crossover
network with tweeter overload protection, the
PX110MK2 delivers a clear and natural sound with
an RMS power of 180 Watt and a maximum power
of 350 Watt. The frequency range (-10 dB) starts
from 65 Hz up to 20 kHz and the sensitivity (1W /
1m) reaches 98 dB while a maximum continuous
sound pressure level from 120 dB can be achieved.
The construction of the cabinets is made of medium
density fibreboard with a durable textured and
scratch resistant EPDM coating. The front side of
the cabinet is finished with a powder coated steel
grill lined with acoustically transparent backing.
A recessed carry handle on the rear side makes
carrying easy. Positioning and suspension of the
speaker is easily achieved by using the standard
35 mm pole adapter on the bottom side and M10
rigging points. An optional mounting bracket
provides a complete solution for wall mounting. Two
speaker connectors on the rear side of the cabinet
provide reliable connections with easy link-through
to other cabinets.
Tehničke specifikacije
| Dimenzije : |
315 x 545 x 320 mm |
| Osetljivost (1w/1m) : |
98 dB |
| Težina : |
17,5 kg |
| Frekvencijski opseg (-10dB) : |
65Hz - 20 kHz |
| Frekvencijski odaziv (-3,+3dB) : |
80Hz - 18kHz |
| RMS Snaga : |
180 Watt |
| Max snaga : |
350 Watt |
| Max SPL : |
120 dB |
| Impendansa : |
8 Ohm |
