Opis artikla
High-quality in-wall/ceiling loudspeaker; 5 1 ” 2-Way driver; Fast-con™ connections; 16 Ohm impedance; Moisture proof cone treatment; Aluminum front gril; Wide 100° conical coverage; Quick-fit installation system; Paintable to blend-in
Ostale informacije
The WS series loudspeakers are high-quality inwall/ceiling
loudspeakers, delivering exceptional
sound quality and value for a wide variation of
applications, ranging from paging and announcements
to background music systems in a wide
range of business applications, including hotels,
restaurants and pubs, corporate offices, retail
stores, etc.

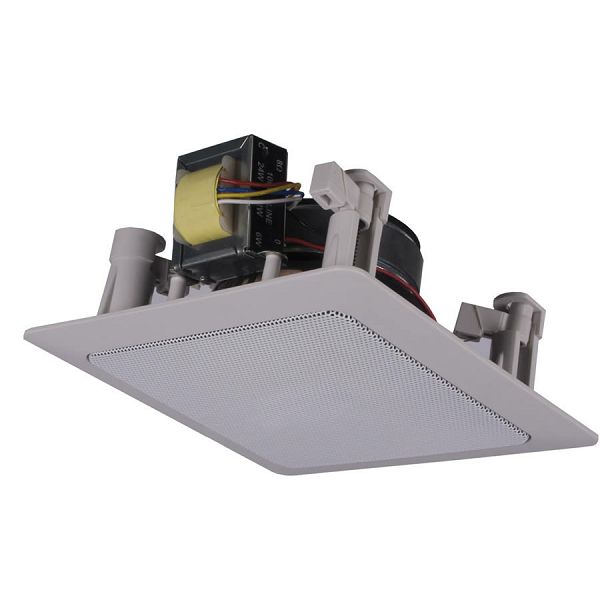

The WS524 in-wall/ceiling loudspeaker features a
5 1 ” driver with a coaxially mounted 1” tweeter,
having a continuous power handling of 30 Watt
and a maximum power handling of 60 Watt. The
2-way construction makes the WS524 the perfect
match for a wide variation highly demanding
of applications, guaranteeing a high-quality and
true-to-nature reproduction of music and speech.
The moisture proof treatment on the speakers’
cone and aluminum front grill protects it for installation
in humid or outdoor environments.
The 16 Ohms impedance allows connection of
a large number of loudspeakers in a standard
low impedance audio system (up to 4 speakers
in parallel on a single 4 Ohm amplifier channel).
Connections are made with Fast-con™, allowing
fast and smooth connections. The mounting of
the loudspeaker into the ceiling is achieved with
a Quick-fix mechanism, offering a great installers
convenience and lifetime stability.
The construction of the speakers’ housing is made
out of high-quality ABS, while the front is covered

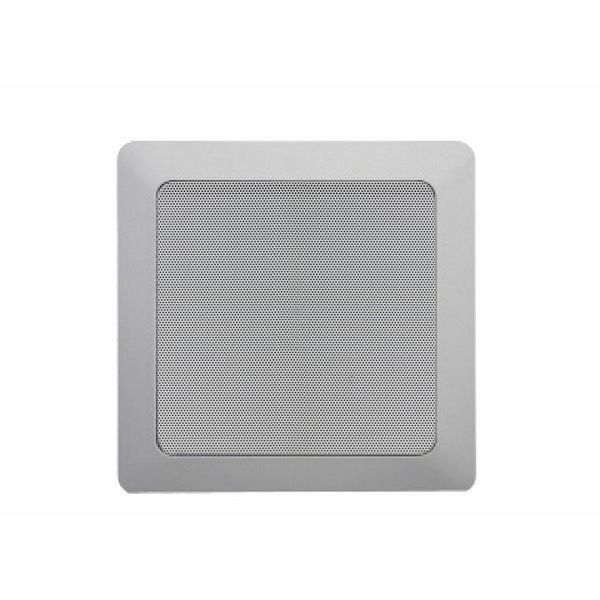

by a solid powder-coated aluminum grille. Custom
painting is possible for a total blending into
any environment
Tehničke specifikacije
Dimenzije : |
|
Osetljivost (1w/1m) : |
|
Težina : |
|
Frekvencijski opseg (-10dB) : |
|
Frekvencijski odaziv (-3,+3dB) : |
|
RMS Snaga : |
|
Max snaga : |
|
Max SPL : |
|
Impendansa : |
|
