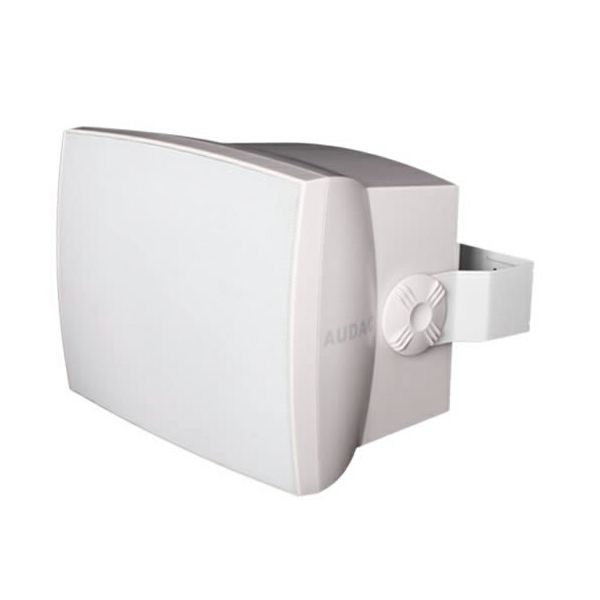

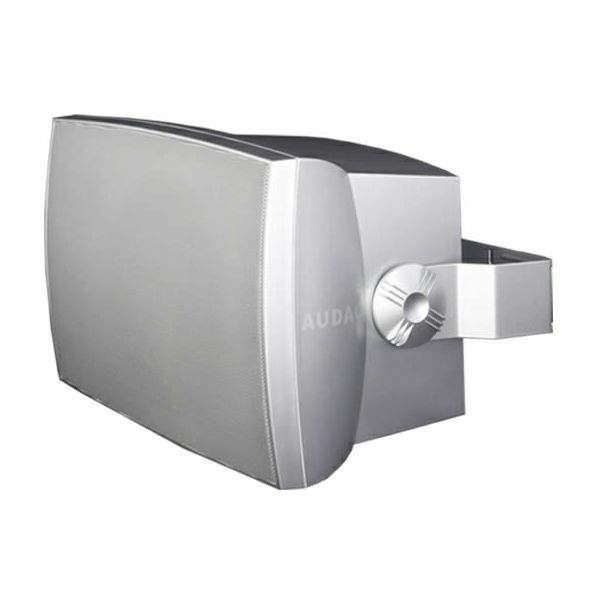

Zidni nadgradni zvučnik Audac WX302/O

Ostale informacije

The Audac WX302/O speakers are specifically designed for outdoor use and lend it selves to a variety of applications, ensuring true-to-nature, high-fidelity reproduction of music and speech. The electroplated paint steel mounting brackets allow users to mount the WX302/O vertically as well as horizontally. A special treatment with powder coating provides the necessary protection for all weather conditions. Because of the special powder coating, the brackets can pass the 96 hours salt-spray test, which has reached to the standard for outdoor applications. A drain hole behind the aluminium grill allows rainwater to flow out. The waterproof AWX-5 connector at the backside makes sure that this speaker meets the IP55 standards. The WX302/O’s are 2-way performance speakers with a 3” low frequency loudspeaker and a 1” dome tweeter. With the rotatable waterproof AWX-5 connector at the back of the speaker, the power tapping can be set in 3 adjustable steps for 100V and one step for 8 Ohm standard low impedance applications. - 20 Watt, 10 Watt, 5 Watt @ 100 V - 30 Watt @ 8 Ohm The speakers are built in a rugged synthetic housing and available in 2 colours. - Outdoor applications - Schools - Athletic fields - Damp places - Swimming pools - Terrace SYSTEM SPECIFICATIONS Speaker Type 2-Way Max. power 60 W RMS power 30 W Impedance 8 Ohm Line Transformer Taps 1 20 W / 500 Ohm 2 10 W / 1000 Ohm 3 5 W / 2000 Ohm Sensitivity (1W / 1m) 85 dB Sound Pressure Max W / 1m @ 8 Ohm 100 dB Sound Pressure Max W / 1m @ 100 Volt 95 dB Frequency Response (± 3 dB) 90 Hz - 18 kHz Frequency Range (-10 dB) 60 Hz - 20 kHz Cross-over Type Passive built-in Cross-over Frequency 2,5 kHz Horizontal Dispersion 100° Vertical Dispersion 100° IP Rating (Ingress Protection) 55 PRODUCT FEATURES Dimensions (Width x Height x Depth) 199 x 129 x 120 mm Weight Net 1,66 Kg Drivers HF 1” LF 3” Construction ABS housing Mounting & Handling Mounting bracket Grill Type Aluminum grill Connection Waterproof AWX-5 connector Available Colours Black (RAL9005) WX302/OB White (RAL9010) WX302/OW SHIPPING & ORDERING Packaging Carton box Shipping weight & volume (2pcs) 3,9 Kg - 0,016 Cbm Accessories Included Mounting bracket 5-pin connection cable (30 cm) Optional Accessories AU570120005 - 5-pin cable 0.5 m AU570120025 - 5-pin cable 2.5 m AU570120050 - 5-pin cable 5 m *

Tehničke specifikacije

Dimenzije :	199 x 129 x 120 mm
Osetljivost (1w/1m) :	85 dB
Težina :	1.66 kg
Frekvencijski opseg (-10dB) :	60Hz - 20kHz
Frekvencijski odaziv (-3,+3dB) :	90Hz - 18kHz
RMS Snaga :	30 Watt
Max snaga :	60 Watt
Max SPL :	100 dB
Impendansa :	20 W / 10 W / 5 W / 8 Ohm
