Opis artikla
Patented Clevermount™ mounting system; Stunning design of loudspeaker and bracket; Installation & connection in no time; 1” dome tweeter & 6” Woofer; 8 Ohm or 100 Volt (4 taps) connection; High-quality sound reproduction; Horizontal & vertical mounting; Available in black and white.
Ostale informacije

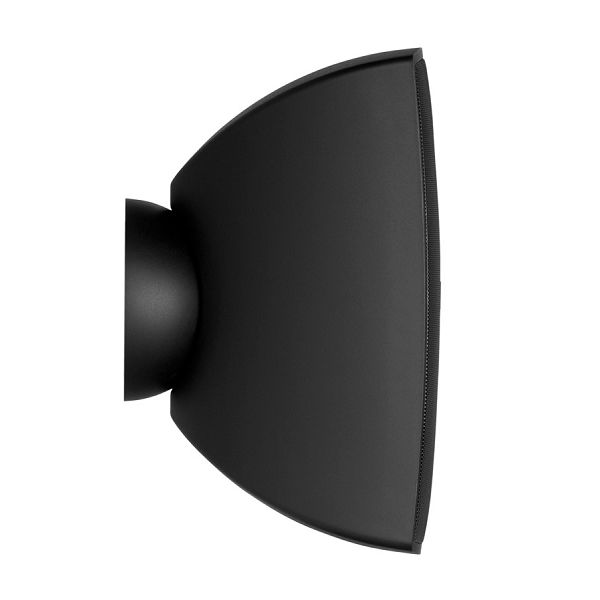

The ATEO is a series of extraordinary loudspeakers
especially designed for fixed install in indoor
applications, ranging from modern residential
applications to the most demanding designer
applications in evironments such as retail stores,
pubs, restaurants or even clubs.
The ATEO 6 is the 6” version, with a 1” dome tweeter
and a 6” Mid / Low frequency driver, ensuring a trueto-nature,
high-fidelity reproduction of music and
speech.
It features a stunningly designed and elegant
looking ABS housing which is fitted with highquality
components. What makes this loudspeaker
range so exceptional is the specially designed
mounting bracket using Clevermount™ technology,
making the loudspeakers cabinet flow together with
the mounting bracket providing a great ease for
installing the loudspeaker in one good-looking entity.

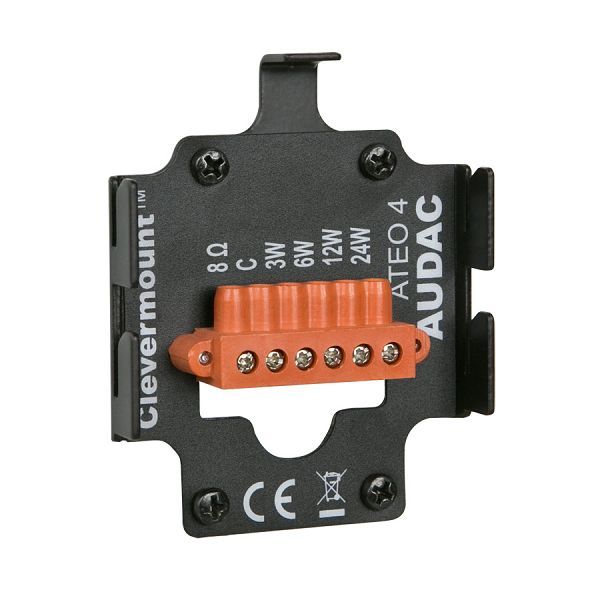

The mounting and connection of the loudspeaker is
simply done by attaching the included metal wallplate
to the desired location. When mounted, the
wires must be connected to the desired terminal of
the custom connection block. The desired power
tap for 100 Volt or 8 Ohm can be selected by
picking the right terminal. After this is done, only
five seconds of work is necessary for clipping the
loudspeaker onto the wall-plate and tightening the
safety screw, then you’re ready to rock!
This way, it’s really child’s play to install a large
number of loudspeakers in no-time, even if you
are working alone while people are watching what
you are doing or installing the speakers up high,
standing on a ladder.

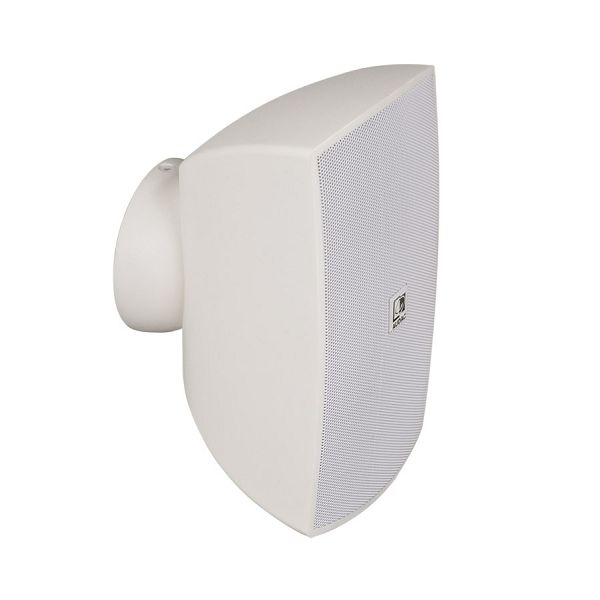

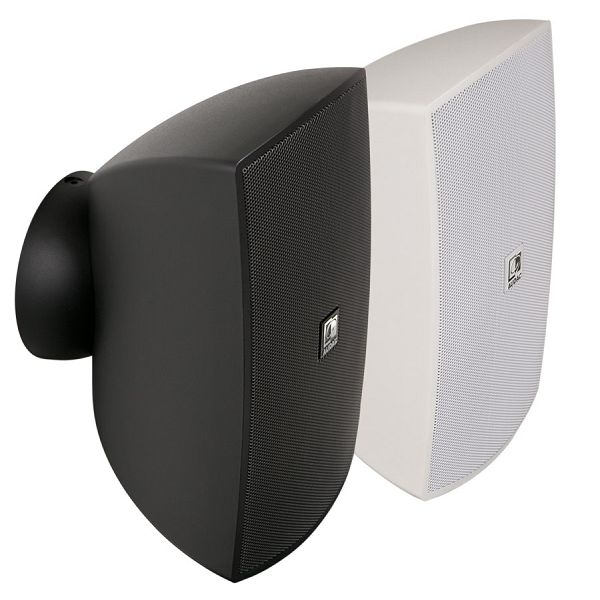

All Ateo series speakers are available in Black (/B)
or White (/W)
Tehničke specifikacije
Dimenzije : |
194 x 350 x 220 mm |
Osetljivost (1w/1m) : |
89 dB |
Težina : |
3.82 kg |
Frekvencijski opseg (-10dB) : |
|
Frekvencijski odaziv (-3,+3dB) : |
65Hz - 20kHz |
RMS Snaga : |
60 Watt |
Max snaga : |
120 Watt |
Max SPL : |
|
Impendansa : |
8 Ohm |
