Opis artikla
High-fidelity, full-range reproduction of music and speech; High efficiency horn loading; Application-specific coverage pattern; Scratch-free EPDM coating; Linking possible; IP rating of 65
Ostale informacije

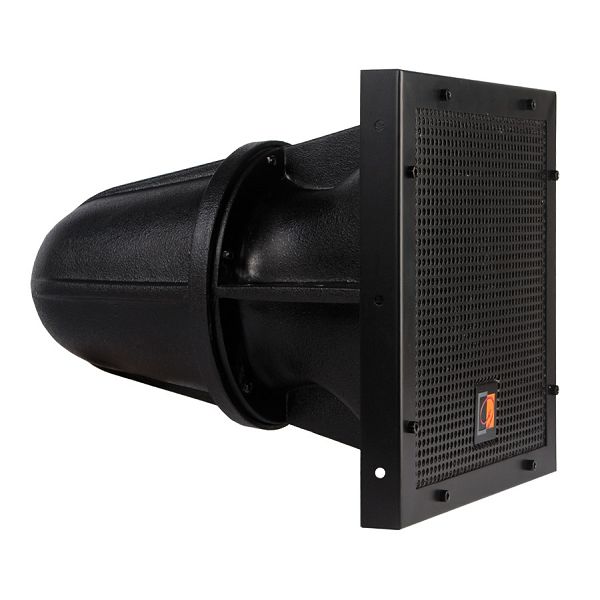

The HS2xx series are 2-way horn loaded
loudspeakers which are specifically engineered to
provide a long-throw, full-range sound projection
in a wide variety of in- and outdoor applications.
The HS208TMK2 is the 8” model of the HS2xx
family which is fitted with an 100 Volt line
transformer. It features a 8” high output woofer
and compression driver with 1.3” voice coil. The
compression driver is equipped with an overload
protection and is fitted with a 40° x 40° coverage
horn which is coaxially constructed as one entitity
with the loudspeakers enclosure.
Thanks to the selection of complementary highquality
components which are carefully matched,
the HS208TMK2 delivers a wide range, smooth
frequency response with a high efficiency. This
ensures an extraordinary clarity of speech and
extended frequency response for music with an
RMS power of 150 Watt, up to a maximum power of
300 Watt. The frequency range (-10 dB) starts from
70 Hz up to 20 kHz and the sensitivity (1W / 1m)
reaches 97 dB, while a maximum continuous sound
pressure level of 123 dB can be achieved.
The enclosure is constructed out of multi-layer glass
composite material with a durable scratch resistant
EPDM coating. The aluminium front grill is lined
with an acoustical transparent and water eliminating
backing. A waterproof connection box containing
a multi-tapping barrier terminal block enables
the selection of different line transformer power
tappings, while providing easy link-through to other
speakers. These specific features make the system
IP65 rated when installed at minimum 5° downtilt.
An optional mounting bracket provides a complete
solution for installation of the system.
Tehničke specifikacije
| Dimenzije : |
360 x 455 x 360 mm |
| Osetljivost (1w/1m) : |
97 dB |
| Težina : |
15,6 kg |
| Frekvencijski opseg (-10dB) : |
70Hz - 20kHz |
| Frekvencijski odaziv (-3,+3dB) : |
100Hz - 18kHz |
| RMS Snaga : |
150 Watt |
| Max snaga : |
300 Watt |
| Max SPL : |
123 dB |
| Impendansa : |
8 Ohm |
