Truba zvučnik Audac HS208MK2

Ostale informacije

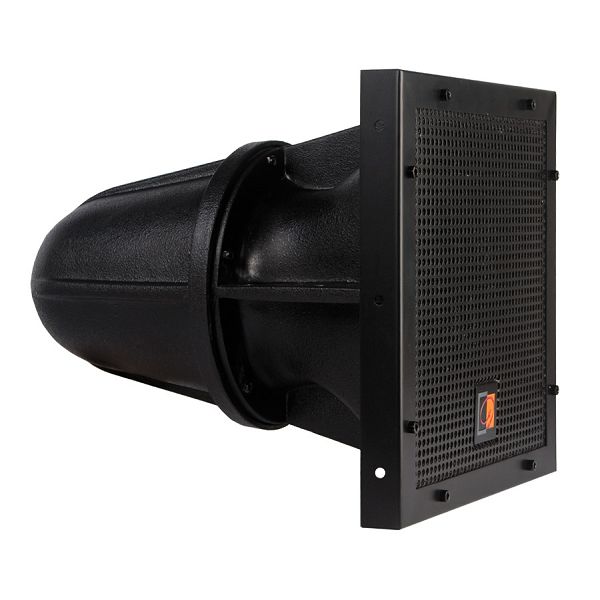

The HS2xx series are 2-way horn loaded loudspeakers which are specifically engineered to provide a long-throw, full-range sound projection in a wide variety of in- and outdoor applications. The HS208MK2 is the 8” model of the HS2xx family consisting of a 8” high-output woofer and a compression driver with 1.3” voice coil. The compression driver is equipped with an overload protection and is fitted with a 40° x 40° coverage horn which is coaxially constructed as one entity with the loudspeaker’s enclosure. Thanks to the selection of complementary highquality components which are carefully matched, the HS208MK2 delivers a wide range, smooth frequency response with a high efficiency. This ensures an extraordinary clarity of speech and extended frequency response for music with an RMS power of 150 Watt, up to a maximum power of 300 Watt. The frequency range (-10 dB) starts from 70 Hz up to 20 kHz and the sensitivity (1W / 1m) reaches 97 dB, while a maximum continuous sound pressure level of 123 dB can be achieved. The enclosure is constructed out of multi-layer glass composite material with a durable scratch resistant EPDM coating. The aluminium front grill is lined with an acoustical transparent and water eliminating backing. Two heavy-duty SpeakON connectors are fitted with waterproof gaskets which ensures a reliable connection with easy linkthrough to other speakers. These specific features make the system IP54 rated when installed at minimum 5° downtilt and using mating connectors. An optional mounting bracket provides a complete solution for installation of the system.

Datoteke artikla

Tehničke specifikacije

Dimenzije :	360 x 455 x 360 mm
Osetljivost (1w/1m) :	97 dB
Težina :	11,6 kg
Frekvencijski opseg (-10dB) :	70Hz - 20kHz
Frekvencijski odaziv (-3,+3dB) :	100Hz - 18kHz
RMS Snaga :	150 Watt
Max snaga :	300 Watt
Max SPL :	123 dB
Impendansa :	8 Ohm
