Opis artikla
High efficiency; Wide opening angle; Excellent speech reproduction; Tough ABS construction; Water and dust protected to IP56; Versatile mounting bracket; Adjustable power tappings
Ostale informacije

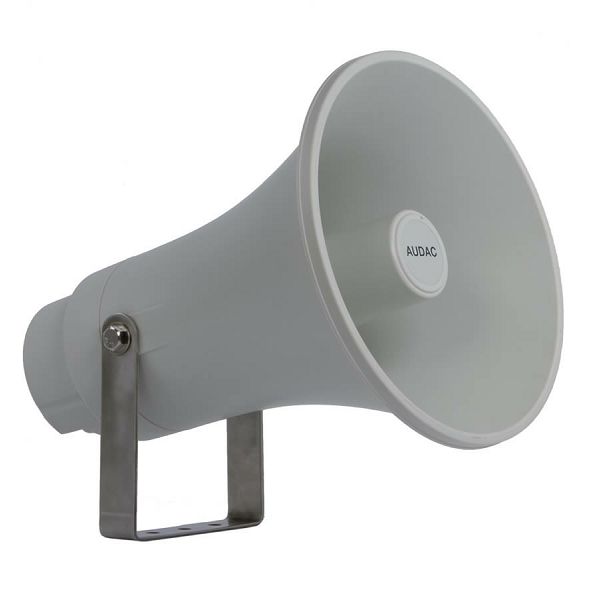

The CHA230 is a long throw compression horn loudspeaker with an RMS power of 30 Watt. It is fitted with a line transformer with adjustable power tappings, and can be used in 70V or 100V PA installations at 30W, 20W, 10W or 5W.
The CHA series are compression horn loudspeakers especially designed for paging and background music applications, offering durability and optimal speech and music reproduction. They are fitted with a line transformer with adjustable power tappings, to be used in 70V/100V public adress applications.
The speakers are made from tough ABS, finished in a light grey color and with sturdy adjustable mounting bracket. The Ingress Protection rating of IP56 makes them suitable for outdoor use.
Tehničke specifikacije
| Dimenzije : |
238 x 302 mm |
| Osetljivost (1w/1m) : |
109 ± 3 dB |
| Težina : |
2,13 kg |
| Frekvencijski opseg (-10dB) : |
|
| Frekvencijski odaziv (-3,+3dB) : |
400 Hz - 7.5 kHz |
| RMS Snaga : |
30 Watt |
| Max snaga : |
45 Watt |
| Max SPL : |
|
| Impendansa : |
20 Ohm |
