Opis artikla
High efficiency drivers; Wide opening angle; Excellent speech reproduction; Tough ABS construction; Water and dust protected to IP56; Versatile mounting bracket; Adjustable power tappings
Ostale informacije
The CHA series are compression horn loudspeakers.
They are especially designed for paging and
background music applications, offering durability
and optimal speech and music reproduction in a
wide variation of in- and outdoor applications.

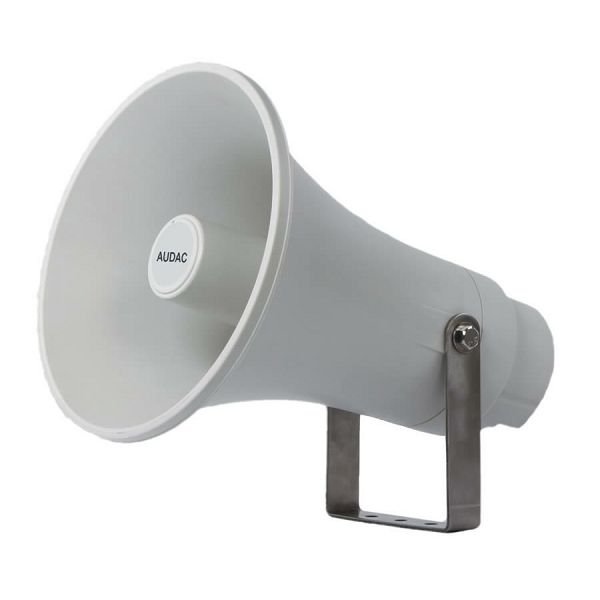

The CHA215 is a powerful circular compression
horn loudspeaker with an RMS power of 15
Watt.
It is fitted with a line transformer for use in 70V
and 100V PA applications with adjustable power
tappings on the primary winding to allow different
power settings.
The power can be adjusted in steps of 3dB with
with power taps for 15W, 7.5W, 3.75W or 1.9W.
The desired power tap can be selected by an adjuster
screw located at the rear of the speaker.
The housing is made of sturdy ABS, finished in
a Light-Grey colour and with a sturdy adjustable
mounting bracket, allowing the sound beam to
be accurately directed.
The Ingress Protection rate of IP56 makes them
suitable for indoor as well as outdoor use.
Tehničke specifikacije
| Dimenzije : |
208 x 271.5 mm |
| Osetljivost (1w/1m) : |
107 ± 3 dB |
| Težina : |
1,95 kg |
| Frekvencijski opseg (-10dB) : |
|
| Frekvencijski odaziv (-3,+3dB) : |
400Hz - 9kHz |
| RMS Snaga : |
15 Watt |
| Max snaga : |
25 Watt |
| Max SPL : |
|
| Impendansa : |
20 Ohm |
