Opis artikla
Steel fire protection dome; Two power taps; Steel front grill; Flame retardant materials; Ceramic connection block; Thermal fuse; EN60849 Compliant
Ostale informacije

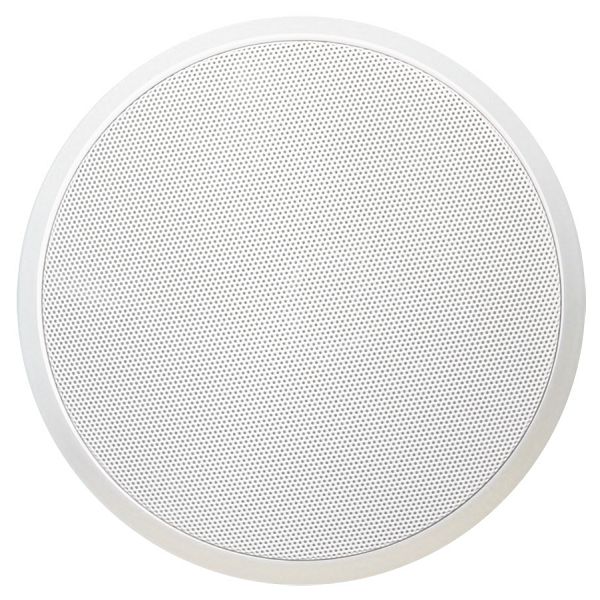

The CSF506 is a fire-protected ceiling speaker
with a 5” cone, capable of producing a power of
6 W.
It ensures a good reproduction of speech and
alarm signals for evacuation purposes. It is fitted
with a 100V line transformer with power taps for 6
W and 3 W to be used in large 100V PA systems.

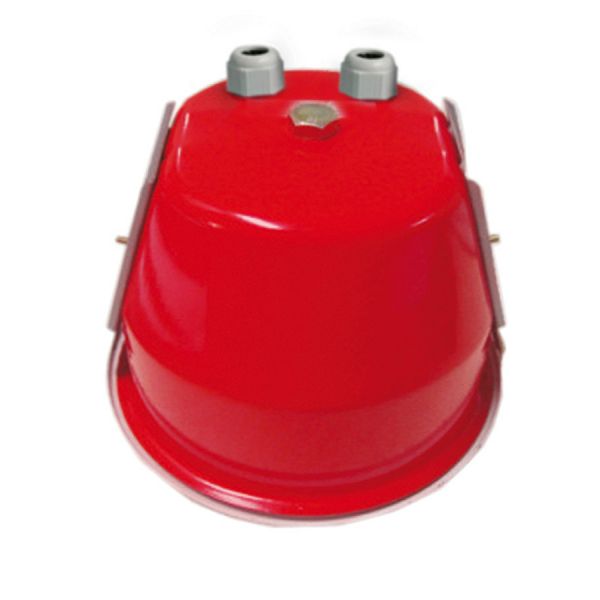

The speaker is equipped with a special steel fire
protection dome fitted around the speaker and a
steel front grill with flame retardant materials.
The connections of the loudspeaker are performed
using a ceramic connection block and the thermal
fuse ensures that in case of fire the loudspeaker
will be disconnected from the circuit. Hereby, the
other loudspeakers on the same circuit will keep
on operating.
Tehničke specifikacije
| Dimenzije : |
180 x 127 mm |
| Osetljivost (1w/1m) : |
|
| Težina : |
1,3 kg |
| Frekvencijski opseg (-10dB) : |
|
| Frekvencijski odaziv (-3,+3dB) : |
90 Hz - 18 kHz |
| RMS Snaga : |
6 Watt |
| Max snaga : |
10 Watt |
| Max SPL : |
|
| Impendansa : |
8 Ohm |
