Opis artikla
High-quality 2-way ceiling loudspeaker; Very attractive design; Detachable aluminium grill; 16 Ohm Impedance; True-to-nature sound reproduction; Very wide frequency response; Easy to hide away; Quick and simple mounting
Ostale informacije
The CS series are elegant ceiling loudspeakers,
designed for use in any possible application
where is need for a sound system without
obvious speakers. They are made of high quality
components, to ensure a beautiful warm sound
reproduction of music and speech.

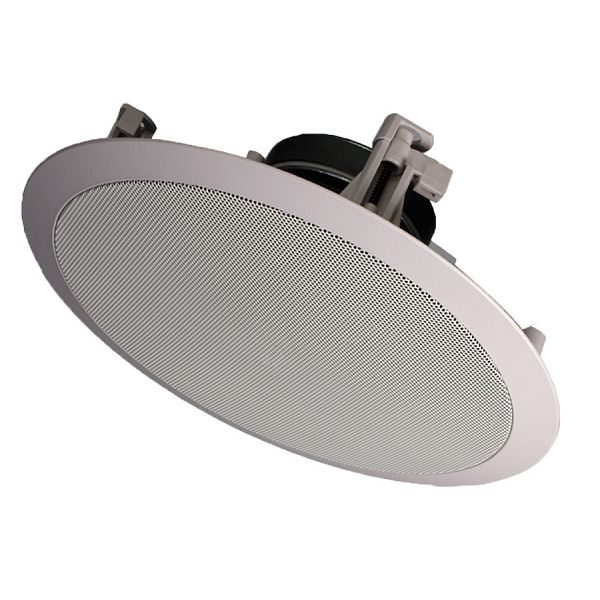

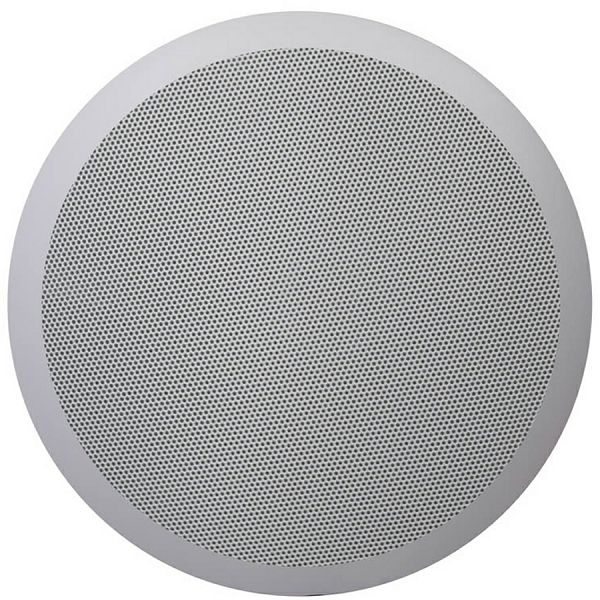

The CS85 is a 2-way high quality loudspeaker
with a 8” driver for the low frequency’s, and 1”
coaxial tweeter mounted in the centre. It is
capable of producing up to 40W RMS, with a
maximum of 80W.
It ensures a brilliant reproduction of all kinds of
music.
The /D version is the 16 Ohm variant of the CS85
speaker, providing the additional advantage for
connecting a larger number of speakers in parallel
to a low impedance audio system.
The cone is moisture-proof treated, so they can
be used in damp rooms and outside applications,
the grill and housing can also be painted to
integrate seamlessly into your interior.
Below the detachable grill, there are four screws
for a quick and simple attachment of the unit.
The removable grill and housing of the speaker
can be painted, to blend in with the structure the
speaker is built in. With these speakers comes an
easy cut-out template to facilitate the installation.
Tehničke specifikacije
Dimenzije : |
275 x 90 mm |
Osetljivost (1w/1m) : |
94 dB |
Težina : |
1,9 kg |
Frekvencijski opseg (-10dB) : |
|
Frekvencijski odaziv (-3,+3dB) : |
40 Hz - 20 kHz |
RMS Snaga : |
40 Watt |
Max snaga : |
80 Watt |
Max SPL : |
112 dB |
Impendansa : |
16 Ohm |
