Opis artikla
High-quality ceiling loudspeaker; 5 1 ” 2-way driver; Fast-con™ connections; 100V multitap transformer & 8 Ohm bypass; Moisture proof cone treatment; Aluminium front grill; Wide 135° conical coverage; Quick-fit installation system; Paintable to blend-in
Ostale informacije
The CS series loudspeakers are high-quality
in-ceiling loudspeakers, delivering exceptional
sound quality and value for a wide variation
of applications, ranging from paging and
announcements to background music systems in
a wide range of business applications, including
hotels, restaurants and pubs, corporate offices,
retail stores, etc.
The CS75 in-ceiling loudspeaker features a 5
1 ” driver with a coaxially mounted 1” tweeter,
having a continuous power handling of 30 Watt
and a maximum power handling of 60 Watt. The
2-way construction makes the CS75 the perfect
match for a wide variation highly demanding of
applications, guaranteeing a high-quality and
true-to-nature reproduction of music and speech.
The moisture proof treatment on the speakers’
cone and aluminium front grill protects it for
installation in humid or outdoor environments.
A multi-tapping line transformer fitted with Fastcon™
allows fast and smooth connections to 100
Volt public address or low impedance systems.
The mounting of the loudspeaker into the ceiling
is achieved with a Quick-fix mechanism, offering a
great installers convenience and lifetime stability.
The construction of the speakers’ housing is
made out of high-quality ABS, while the front is
covered by a solid powder-coated aluminium

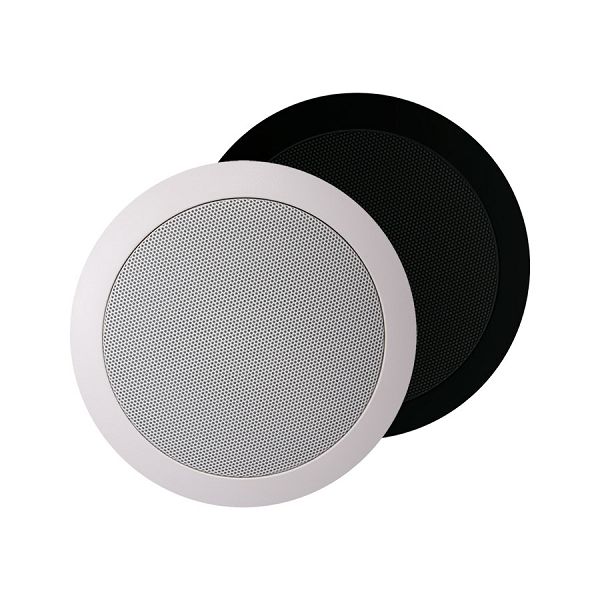

grille. It comes available in different colours, while
custom painting is possible for a total blending
into any environment.
Tehničke specifikacije
| Dimenzije : |
205 x 90 mm |
| Osetljivost (1w/1m) : |
90 dB |
| Težina : |
1,5 kg |
| Frekvencijski opseg (-10dB) : |
50 Hz - 20 kHz |
| Frekvencijski odaziv (-3,+3dB) : |
60 Hz - 20 kHz |
| RMS Snaga : |
30 Watt |
| Max snaga : |
60 Watt |
| Max SPL : |
104 dB |
| Impendansa : |
8 Ohm |
