Opis artikla

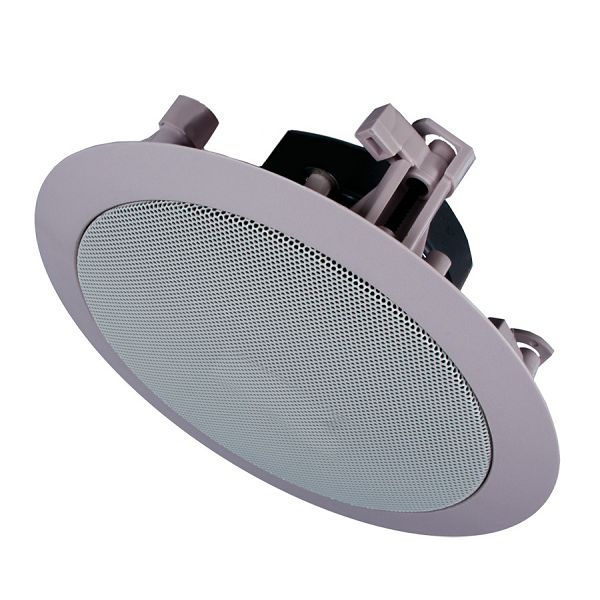

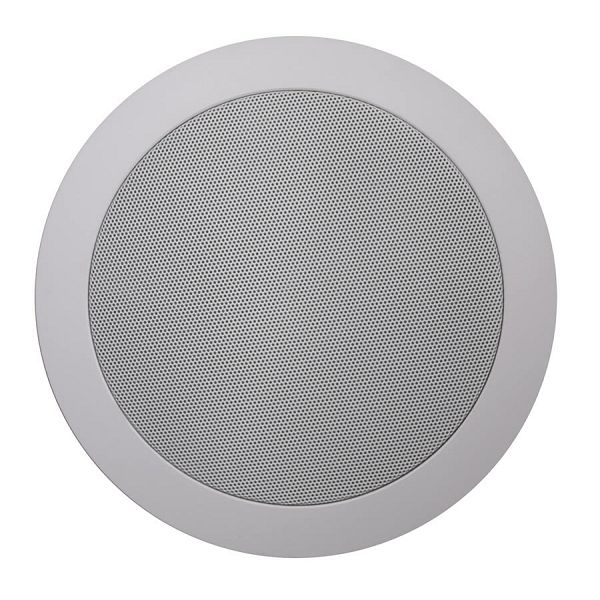

High-quality ceiling loudspeaker; 5 1 ” Dual cone driver; Fast-con™ connections; 16 Ohm impedance; Wide 140° conical coverage; Quick-fit installation system; Paintable to blend-in
Ostale informacije
The CS series loudspeakers are high-quality
in-ceiling loudspeakers, delivering exceptional
sound quality and value for a wide variation
of applications, ranging from paging and
announcements to background music systems in
a wide range of business applications, including
hotels, restaurants and pubs, corporate offices,
retail stores, etc.
The CS55D in-ceiling loudspeaker features a
5 1 ” dual cone driver with a continuous power
handling of 10 Watt and a maximum power
handling of 20 Watt. The dual-cone construction
makes the CS55D the perfect match for a wide
variation of general purpose indoor applications,
ranging from paging and announcement systems
to background music systems.
The 16 Ohms impedance allows connection of
a large number of loudspeakers in a standard
low impedance audio system (up to 4 speakers
in parallel on a single 4 Ohm amplifier channel).
Connections are made with Fast-con™, allowing
fast and smooth connections. The mounting of
the loudspeaker into the ceiling is achieved with
a Quick-fix mechanism, offering a great installers
convenience and lifetime stability.
The construction of the speakers’ housing is
made out of high-quality ABS, while the front is
covered by a solid powder-coated steel grille. It
comes available in different colours, while custom
painting is possible for a total blending into any
environment.
Tehničke specifikacije
| Dimenzije : |
202.5 x 67 mm |
| Osetljivost (1w/1m) : |
93 dB |
| Težina : |
0,55 kg |
| Frekvencijski opseg (-10dB) : |
55 Hz - 16 kHz |
| Frekvencijski odaziv (-3,+3dB) : |
70 Hz - 14 kHz |
| RMS Snaga : |
10 Watt |
| Max snaga : |
20 Watt |
| Max SPL : |
109 dB |
| Impendansa : |
16 Ohm |
