Opis artikla
High-quality ceiling loudspeaker; 5 1 ” dual cone driver; Fast-con™ connections; 100V multitap transformer & 8 Ohm bypass; Wide 140° conical coverage; Quick-fit installation system; Paintable to blend in
Ostale informacije
The CS series loudspeakers are high-quality
in-ceiling loudspeakers, delivering exceptional
sound quality and value for a wide variation
of applications, ranging from paging and
announcements to background music systems in
a wide range of business applications, including
hotels, restaurants and pubs, corporate offices,
retail stores, etc.

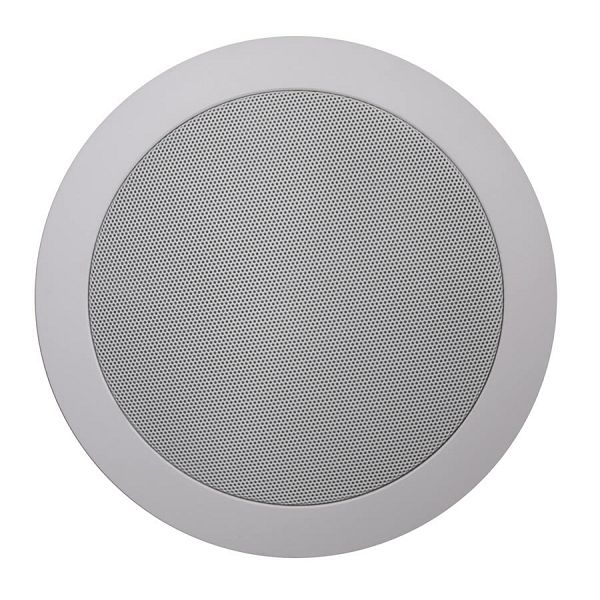

The CS55 in-ceiling loudspeaker features a 5 1 ”
dual cone driver with a continuous power handling
of 10 Watt and a maximum power handling of 20
Watt. The dual cone construction makes the CS55
the perfect match for a wide variation of general
purpose indoor applications, ranging from paging
and announcement systems to background music
systems.
A multi-tapping line transformer fitted with Fastcon™
allows fast and smooth connections to 100
Volt public address or low impedance systems.
The mounting of the loudspeaker into the ceiling
is achieved with a Quickfix mechanism, offering a
great installers convenience and lifetime stability.
The construction of the speaker’s housing is
made from high-quality ABS, while the front is
covered by a solid powder-coated steel grill. It

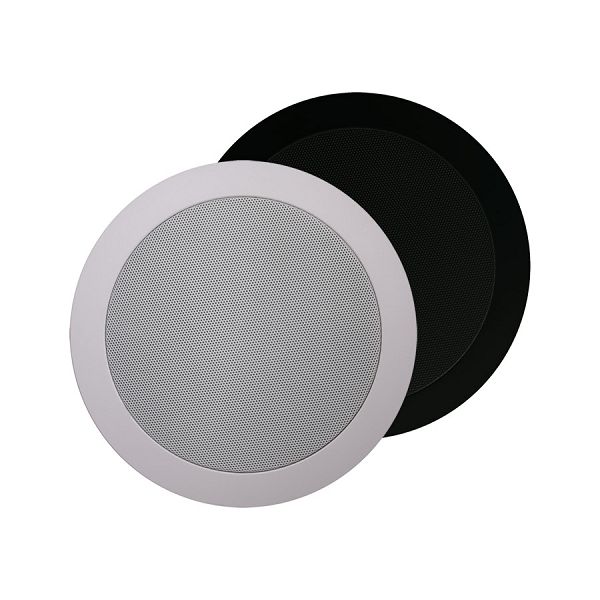

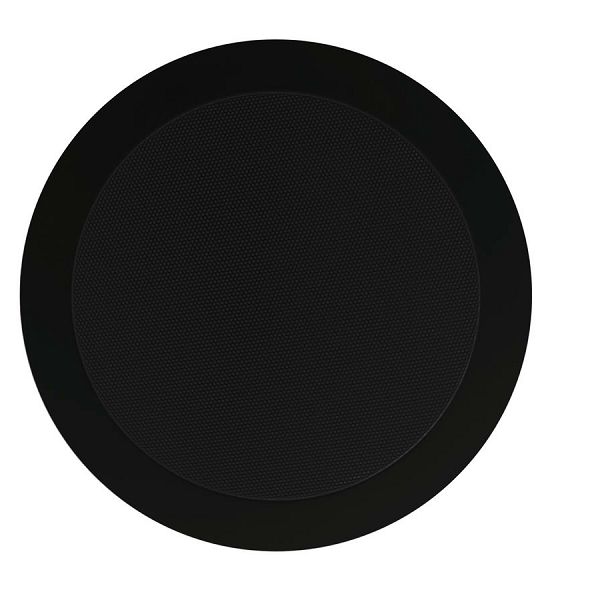

comes available in different colours, while custom
painting is possible so it completely blends into
any environment.
Tehničke specifikacije
| Dimenzije : |
205 x 70 mm |
| Osetljivost (1w/1m) : |
93 dB |
| Težina : |
0,78 kg |
| Frekvencijski opseg (-10dB) : |
55 Hz - 16 kHz |
| Frekvencijski odaziv (-3,+3dB) : |
70 Hz - 14 kHz |
| RMS Snaga : |
10 Watt |
| Max snaga : |
20 Watt |
| Max SPL : |
109 dB |
| Impendansa : |
8 Ohm |
