Opis artikla
High-quality 2-way ceiling speaker; 100V Line transformer with power taps for 24W,12W and 6W; 8 Ohm Low impedance tap; High power, wide frequency response and low
distortion; Metal back dome; True-to-nature sound reproduction; Quick and simple mounting
Ostale informacije

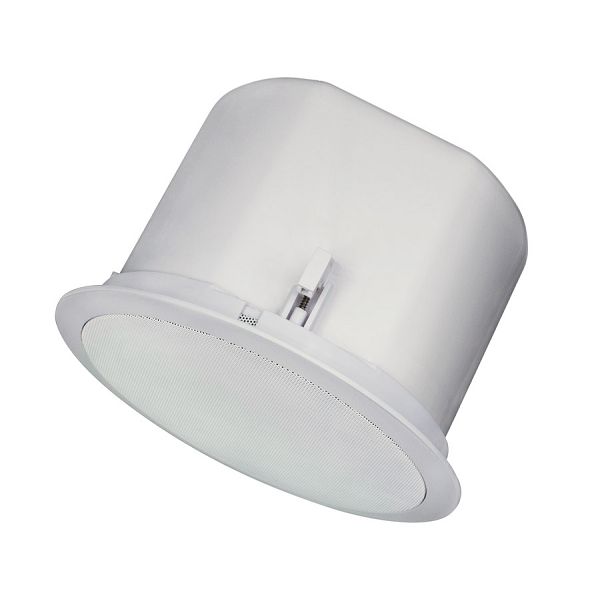

The CS424 is a High-Quality 2-Way ceiling
speaker, consisting of a 4” woofer and a coaxially
mounted 1” tweeter. The High-Quality components
in combination with the metal back dome
provide premium performance for background
music as well as paging systems, no matter what
kind of ceiling of surface the speaker is mounted
to.
The power of 30 Watt, wide frequency response
and low distortion makes the speaker perfectly
suited for applications requiring a higher fidelity of
music such as restaurants, retail stores, professional
offices, and many other applications.
The integrated 100 Volt line transformer makes
the speaker suitable for use in large 100 Volt Public
Address systems. The power can be selected
in three steps of impedance for 100 Volt applications
and an 8 Ohm tapping for low impedance
applications using the rotary switch behind the
front grill.

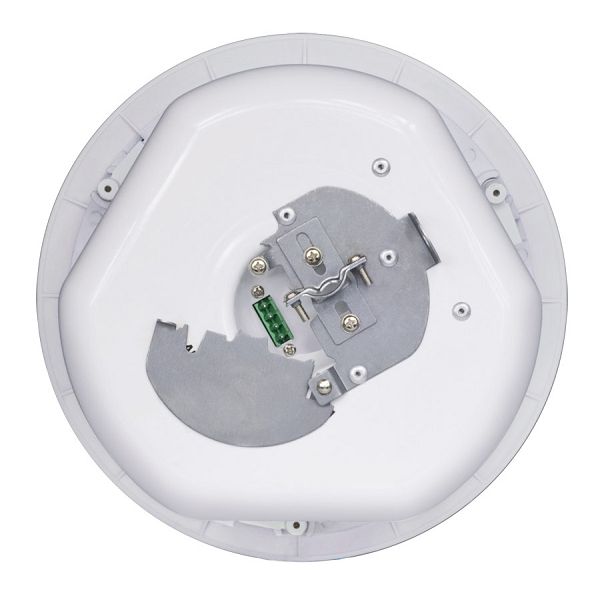

The connection of the speaker can be done using
the 4-pin Terminal block connector at rear side
of the back dome, allowing parallel linkthrough to
other speakers. Installing the speaker can be accomplished
in seconds, without requiring access
above the ceiling, using the simple quick-fixing
mechanism.

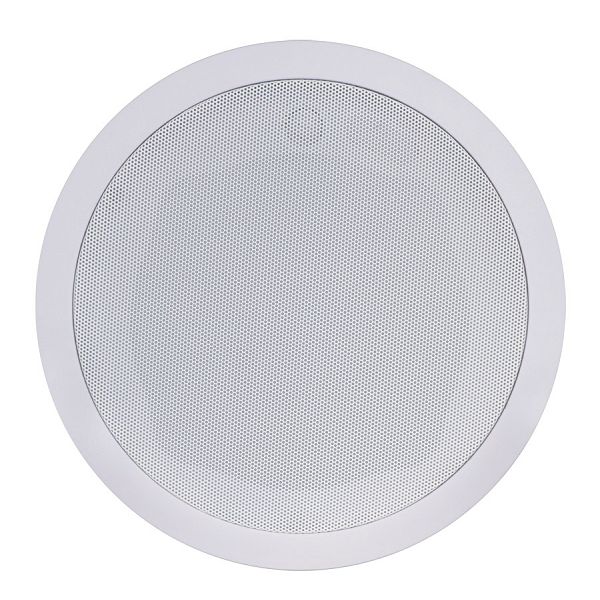

The grill of the speaker can be painted in any
colour, to blend in with the loudspeakers environment.
Tehničke specifikacije
| Dimenzije : |
205 x 182 mm |
| Osetljivost (1w/1m) : |
86 dB |
| Težina : |
1,9 kg |
| Frekvencijski opseg (-10dB) : |
|
| Frekvencijski odaziv (-3,+3dB) : |
130 Hz - 20 kHz |
| RMS Snaga : |
30 Watt |
| Max snaga : |
60 Watt |
| Max SPL : |
101 dB |
| Impendansa : |
8 Ohm |
