Opis artikla
Compact & flexible design; High performance 15” driver; 1400 Watt program power; 127 dB of Max. SPL; 18 mm plywood construction; Integrated carry handles; 35 mm pole adapter option; Recessed connector dish.
Ostale informacije

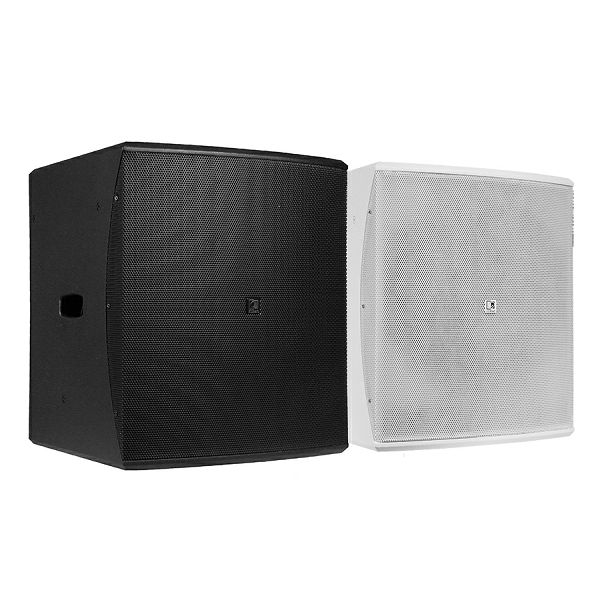

The BASO cabinets are universally useable passive
bass cabinets. Their bass reflex design is engineered
to be as compact as possible while giving
the maximum performance in terms of sound quality
and pressure. Their enclosures are crafted out of
sturdy high-quality plywood while their elegant design
enables them to be placed in any environment.
The BASO15 is loaded with a 15” high-performance
woofer with an RMS power rating of 700 Watt and
maximum power of 1400 Watt. The strength of this
loudspeaker originates from a 4” voice coil which is
allowed to extra long excursions. Displacements are
precisely controlled by the dual low-loss suspension
resulting in a superior linear behaviour.
These carefully selected high-grade materials in
collaboration with accurate acoustical craftmanship
results in an impressive combination of punch and
low frequency extension without compromises. The
highly efficient design results in a sensitivity of 99
dB with a capability of continuous sound pressure
production up to 127 dB. The frequency response
ranges from 38 Hz up to 300 Hz while going down to
34 Hz at -10 dB.
Besides these acoustical aspects, a lot of attention
has been paid to all other aspects making it as
versatile as possible. The enclosure is compact designed
without any sacrifice to robustness due to the
18 mm high-quality plywood material finished with

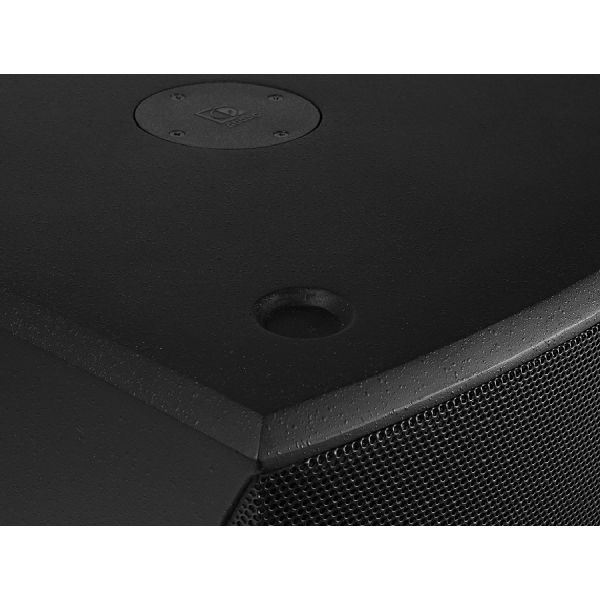

structured coating. The integrated carry handles and
possibility to add an optional 35 mm pole adapter
improve its mobility.

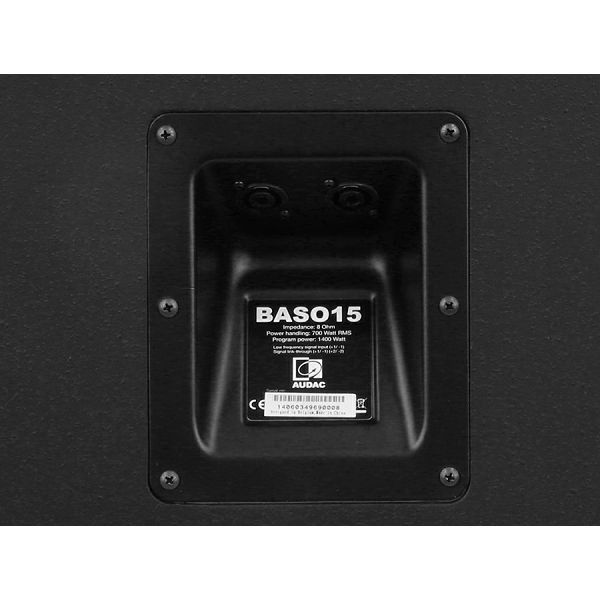

Connections are made using two speakon compatible
connectors located in a recessed connector
dish, allowing link-through to other cabinets. This
also allows close placement to any wall or corner.
Tehničke specifikacije
Dimenzije : |
450 x 534 x 525 mm |
Osetljivost (1w/1m) : |
99 dB |
Težina : |
31 kg |
Frekvencijski opseg (-10dB) : |
34 Hz - 1 kHz |
Frekvencijski odaziv (-3,+3dB) : |
38 Hz - 300 Hz |
RMS Snaga : |
700 Watt |
Max snaga : |
1400 Watt |
Max SPL : |
127 dB |
Impendansa : |
8 Ohm |
