Opis artikla
Compact & flexible design; High performance 12” driver; 1000 Watt program power; 125 dB of Max. SPL; 40 Hz - 300 Hz freq response; 18 mm plywood construction; Recessed connector dish; Dual low-loss suspension with 4” high-excursion voice coil.
Ostale informacije

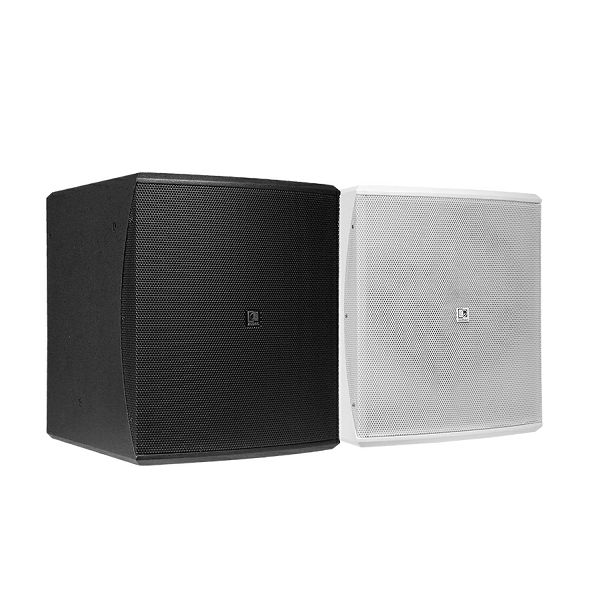

The BASO cabinets are universally useable passive
bass cabinets. Their bass reflex design is engineered
to be as compact as possible while giving
the maximum performance in terms of sound quality
and pressure. Their enclosures are crafted out of
sturdy high-quality plywood while their elegant design
enables them to be placed in any environment.
The BASO12 is loaded with a 12” high-performance
woofer with an RMS power rating of 500 Watt and
maximum power of 1000 Watt. The strength of this
loudspeaker originates from a 4” voice coil which is
allowed to extra long excursions. Displacements are
precisly controlled by the dual low-loss suspension
resulting in a superior linear behaviour.
These carefully selected high-grade materials in
collaboration with accurate acoustical craftmanship
results in an impressive combination of punch and
low frequency extension without compromises. The
highly-efficient design results in a sensitivity of 98
dB with capability of continuous sound pressure
production up to 125 dB. The frequency response
ranges from 40 Hz up to 300 Hz while going down to
35 Hz at -10 dB.
Besides these acoustical aspects, a lot of attention
has been paid to all other aspects making it as
versatile as possible. The enclosure is compact designed
without any sacrifice to robustness due to the
18 mm high-quality plywood material finished with
structured coating.

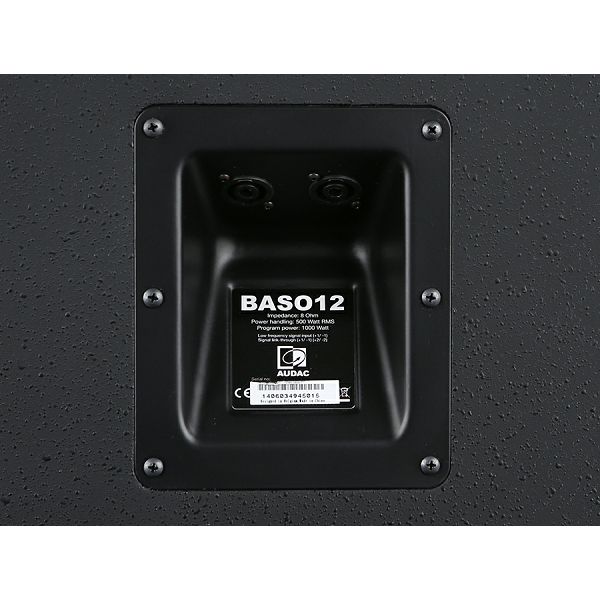

Connections are made using two speakon compatible
connectors located in a recessed connector
dish, allowing link-through to other cabinets. This
also allows close placement to any wall or corner
Tehničke specifikacije
Dimenzije : |
380 x 449 x 460 mm |
Osetljivost (1w/1m) : |
98 dB |
Težina : |
22 kg |
Frekvencijski opseg (-10dB) : |
35 Hz - 600 Hz |
Frekvencijski odaziv (-3,+3dB) : |
40 Hz - 300 Hz |
RMS Snaga : |
500 Watt |
Max snaga : |
1000 Watt |
Max SPL : |
125 dB |
Impendansa : |
8 Ohm |
