2 - Way system; 300 Watt RMS Power; High-fidelity, full range reproduction of music and speech; Vertical or horizontal mounting; Coverage pattern 90° x 75° (Rotatable horn); Integrated rigging points & carry handles; Stand fitting pole adapter (35 mm); Scratch-free EPDM coating
The PX Series are compact full range loudspeaker cabinets for a wide varity of indoor applications. They come in four different models, each of them with different size and performance meeting the requirements for every specific application.
The PX115 MK2 is the 15” model of the PX family, consisting of a 15” high output woofer and a compression driver with 1.3” voice coil. The compression driver is fitted with a 90° x 75° coverage horn which can be rotated allowing both horizontal and vertical use.
Thanks to the high quality components and an accurately optimized integrated passive crossover network with tweeter overload protection, the PX115 MK2 delivers a clear and natural sound with an RMS power of 300 Watt and a maximum power of 600 Watt. The frequency range (-10 dB) starts from 45 Hz up to 20 kHz and the sensitivity (1W / 1m) reaches 100 dB while a maximum continuous sound pressure level from 125 dB can be achieved.
The construction of the cabinets is made of medium density fibreboard with a durable textured and scratch resistant EPDM coating. The front side of the cabinet is finished with a powder coated steel grill lined with acoustically transparent backing.

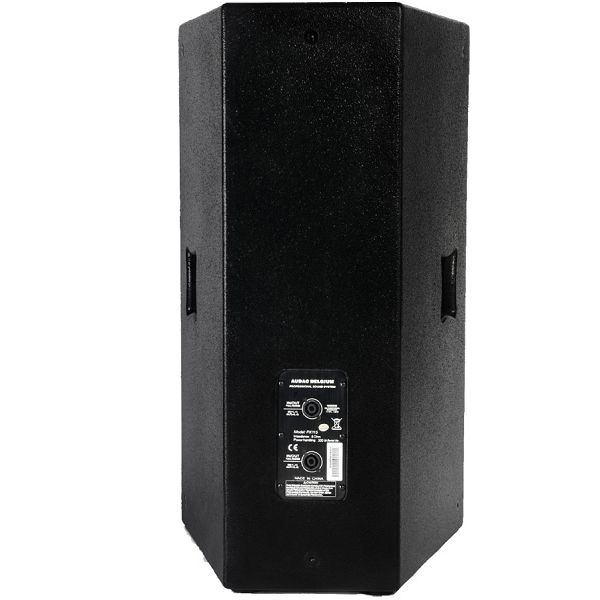

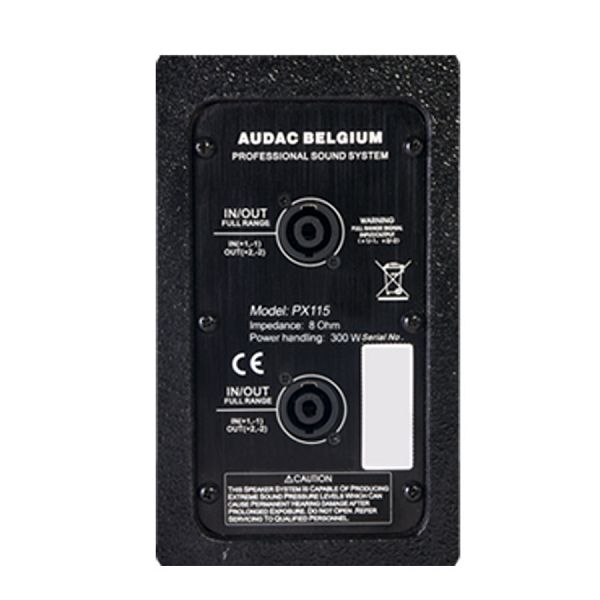

Recessed carry handles on both sides of the cabinet make carrying easy. Positioning and suspension of the speaker is easily achieved by using the standard 35 mm pole adapter on the bottom side and M10 rigging points. An optional mounting bracket provides a complete solution for wall mounting. Two speaker connectors on the rear side of the cabinet provide reliable connections with easy link-through to other cabinets.
|| 435 x 765 x 495 mm
|Osjetljivost (1w/1m) :
|| 100 dB
|| 35 kg
|Frekvencijski opseg (-10dB) :
|| 45Hz - 20 kHz
|Frekvencijski odaziv (-3,+3dB) :
|| 60 Hz - 19 kHz
|RMS Snaga :
|| 300 Watt
|Max snaga :
|| 600 Watt
|Max SPL :
|| 125 dB
|| 8 Ohm
