Opis artikla
Patented Clevermount™ mounting system; Stunning design of loudspeaker and bracket; Installation & connection in no time; 2” Full range aluminium driver; 10 Watt RMS; High-quality sound reproduction; Horizontal & vertical mounting; Available in black and white.
Ostale informacije
The ATEO is a series of extraordinary loudspeakers
especially designed for fixed indoor installations,
ranging from modern residential applications to
the most demanding designer applications in
evironments such as retail stores, pubs, restaurants
or even clubs.
The ATEO 2 is the ultra-compact model of this
series which smoothly integrates into any interior
like no other loudspeaker.
The sound originates from a 2” aluminium cone
driver which provides a full-range, warm and
detailed sound, with an improved response in
the low frequencies due to the ported design.
This way, a smooth sound reproduction with clear
and crisp sound is guaranteed. The internal selfresetting
network provides an optimal overload
protection.
It features a stunningly designed and elegant
looking ABS housing which is fitted with high-quality
components. What makes this loudspeaker range
so exceptional is the specially designed mounting
bracket using Clevermount™ technology, making
the loudspeakers cabinet flow together with the
mounting bracket providing great ease for installing
the loudspeaker in one good-looking entity.
The mounting and connection of the loudspeaker
is done by mounting the wall-plate to the desired
location. The terminal block connector should be
fitted to the wires coming from the amplifier and
plugged into the counterpart on the speaker’s side.
The only next step is clipping the speaker onto the
wall plate and tightening it by a quarter turn until its
fixed.
SYSTEM SPECIFICATIONS
Speaker type Full range
Max power 20 Watt
RMS power 10 Watt
Impedance 8 Ohm
Sensitivity (1W/1m) 83 dB
Sound pressure (max W/1m) 93 dB
Frequency response (±3 dB) 120 Hz - 20 kHz
Frequency range (-10 dB) 100 Hz - 20 kHz
Horizontal dispersion 145°
Vertical dispersion 170°
IP rating (Ingress Protection) 40
PRODUCT FEATURES
Dimensions (Width x Height x Depth) 80 x 136 x 115 mm
Weight net 0.39 Kg
Drivers 2” Aluminium full range
Connectors 2-pin Terminal block
Mounting bracket Clevermount™
Construction ABS
Front finish Finely perforated steel grill
Incline angle Left & Right 25°
Bottom 25°
Top 15°

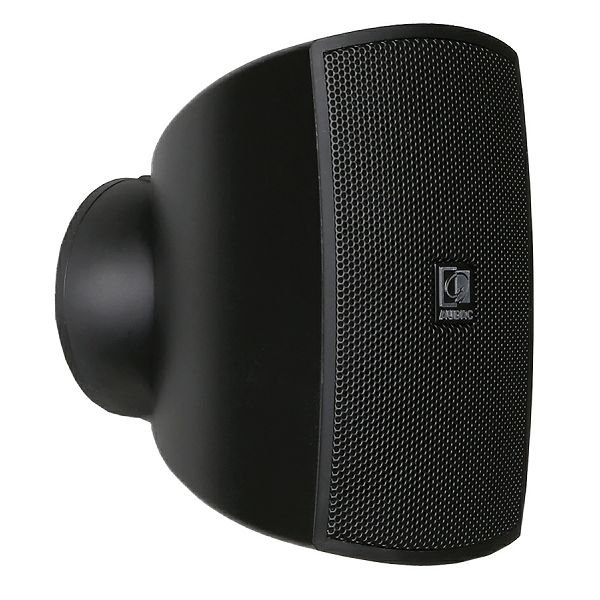

Colour Black (RAL9005) ATEO2/B

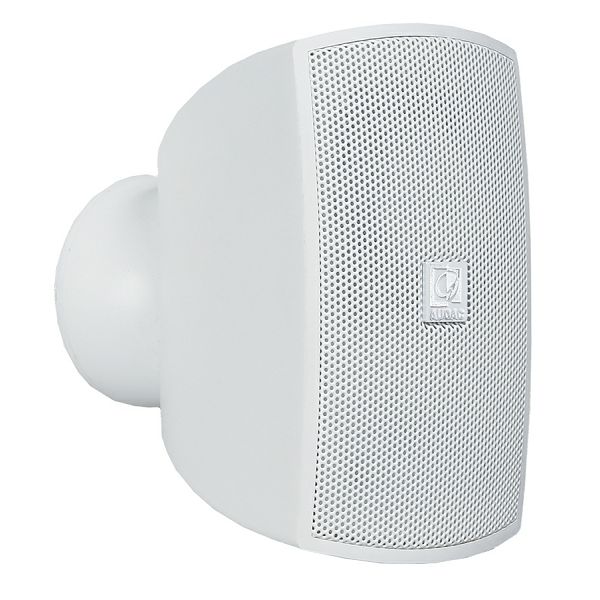

White (RAL9010) ATEO2/W
SHIPPING & ORDERING
Packaging Cardboard box (pair)
Shipping weight & volume 1.0 Kg - 0.044 Cbm (2 pcs)
Optional accessories WTR06 6W 100V line transformer
*AUDAC reserves the right to change specifications without notice: this is part
of our policy to continuously improve our products.
WWW.AUDAC.EU
Architects’ and Engineers’ Sp
Tehničke specifikacije
| Dimenzije : |
80 x 136 x 111.5 mm |
| Osetljivost (1w/1m) : |
83 dB |
| Težina : |
0.39 Kg |
| Frekvencijski opseg (-10dB) : |
100 Hz - 20 kHz |
| Frekvencijski odaziv (-3,+3dB) : |
120 Hz - 20 kHz |
| RMS Snaga : |
10 Watt |
| Max snaga : |
20 Watt |
| Max SPL : |
93 dB |
| Impendansa : |
16 Ohm |
