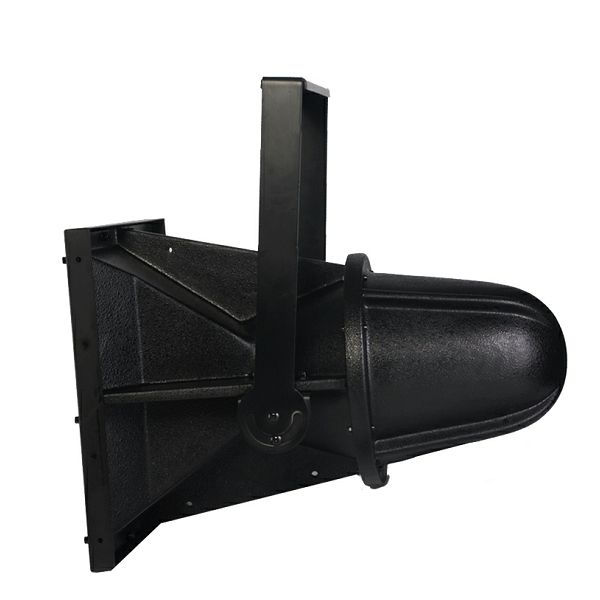

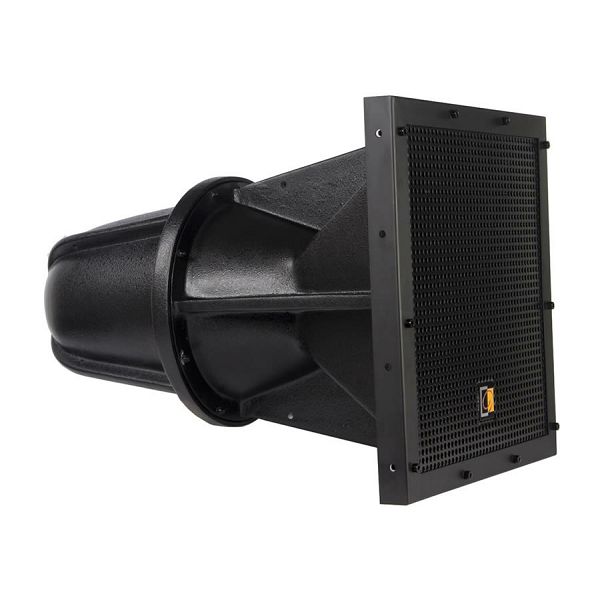

Truba zvučnik Audac HS212TMK2

Ostale informacije

The HS2xx series are 2-way horn loaded loudspeakers which are specifically engineered to provide a long-throw, full-range sound projection in a wide variety of in- and outdoor applications. The HS212TMK2 is the 12” model of the HS2xx family which is fitted with an 100 Volt line transformer. It features a 12” high output woofer and a neodymium compression driver with 1.8” voice coil. The compression driver is equipped with an overload protection and is fitted with a 40° x 40° coverage horn which is coaxially constructed as one entity with the loudspeaker’s enclosure. Thanks to the selection of complementary highquality components which are carefully matched, the HS212TMK2 delivers a wide range, smooth frequency response with a high efficiency. This ensures an extraordinary clarity of speech and extended frequency response for music with an RMS power of 350 Watt, up to a maximum power of 700 Watt. The frequency range (-10 dB) starts from 65 Hz up to 20 kHz and the sensitivity (1W / 1m) reaches 95 dB, while a maximum continuous sound pressure level of 125 dB can be achieved. The enclosure is constructed out of multi-layer glass composite material with a durable scratch resistant EPDM coating. The aluminium front grill is lined with an acoustical transparent and water eliminating backing. A waterproof connection box containing a multi-tapping barrier terminal block enables the selection of different line transformer power tappings, while providing easy link-through to other speakers. These specific features make the system IP65 rated when installed at minimum 5° down tilt. An optional mounting bracket provides a complete solution for installation of the system.

Datoteke artikla

Tehničke specifikacije

Dimenzije :	510 x 710 x 510 mm
Osetljivost (1w/1m) :	95 dB
Težina :	34,5 kg
Frekvencijski opseg (-10dB) :	65Hz - 20kHz
Frekvencijski odaziv (-3,+3dB) :	80Hz - 18kHz
RMS Snaga :	350 Watt
Max snaga :	700 Watt
Max SPL :	125 dB
Impendansa :	8 Ohm
