Opis artikla

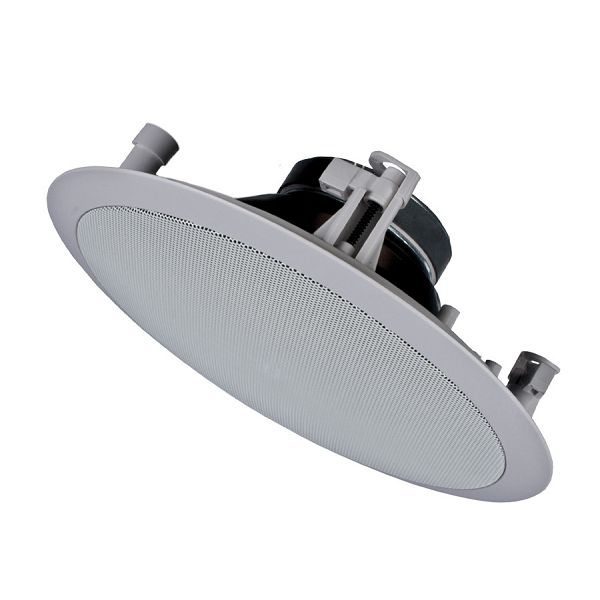

High-quality ceiling loudspeaker; 5 1 ” 2-way driver; Fast-con™ connections; 16 Ohm impedance; Moisture proof cone treatment; Aluminium front grill; Wide 135° conical coverage; Quick-fit installation sy
Ostale informacije
The CS series loudspeakers are high-quality
in-ceiling loudspeakers, delivering exceptional
sound quality and value for a wide variation
of applications, ranging from paging and
announcements to background music systems in
a wide range of business applications, including
hotels, restaurants and pubs, corporate offices,
retail stores, etc.
The CS75 in-ceiling loudspeaker features a 5
1 ” driver with a coaxially mounted 1” tweeter,
having a continuous power handling of 30 Watt
and a maximum power handling of 60 Watt. The
2-way construction makes the CS75 the perfect
match for a wide variation highly demanding of
applications, guaranteeing a high-quality and
true-to-nature reproduction of music and speech.
The moisture proof treatment on the speakers’
cone and aluminium front grill protects it for
installation in humid or outdoor environments.
The 16 Ohms impedance allows connection of
a large number of loudspeakers in a standard
low impedance audio system (up to 4 speakers
in parallel on a single 4 Ohm amplifier channel).
Connections are made with Fast-con™, allowing
fast and smooth connections. The mounting of
the loudspeaker into the ceiling is achieved with
a Quick-fix mechanism, offering a great installers
convenience and lifetime stability.
The construction of the speakers’ housing is
made out of high-quality ABS, while the front is
covered by a solid powder-coated aluminium
grille. It comes available in different colours, while
custom painting is possible for a total blending
into any environment.
Tehničke specifikacije
Dimenzije : |
202.5 x 82 mm |
Osetljivost (1w/1m) : |
90 dB |
Težina : |
0,93 kg |
Frekvencijski opseg (-10dB) : |
50 Hz - 20 kHz |
Frekvencijski odaziv (-3,+3dB) : |
60 Hz - 20 kHz |
RMS Snaga : |
30 Watt |
Max snaga : |
60 Watt |
Max SPL : |
|
Impendansa : |
16 Ohm |
